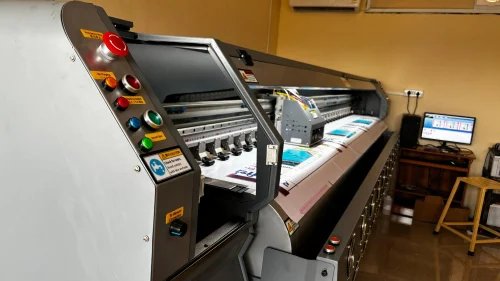

Konica 512/42PL Flex Printing Machine
The Konica 4 Head Flex Printing Machine 512 (42 PL) is an advanced automatic flex printer designed for high-quality solvent printing with Japanese and German precision components. It is equipped with Konica Minolta printheads, a Panasonic servo motor, and an Ultraprint RIP system, ensuring exceptional print quality and high-speed performance.
Technical Specifications
- Automatic Grade: Automatic
- Print Width: 3.2 m
- Series: CK8
- Usage: Flex & Banner Printing
- Brand: Konica
- Ink Type: Solvent Ink
- Weight: 800 kg
- Model/Type: 512 42 PL
- Motor: Japanese Panasonic 400W AC Servo Motor
- Bearings: Japanese NSK Bearings
- Linear System: Japanese THK Linear with 2 Bearing Blocks
- Main Belt: 25mm Megadyne Italy Belt
- Pressure System: Positive Pressure System
- Media Sensor: Korean Autonics Media Sensor
- Control System: Proven BYHX-A-Type KM512i-8H
- Software: Ultraprint RIP Software , Printer Manager
- Heating System: Infra-Red Heating System
- Media Heating: 3-Way Digital Control
- Vacuum Pressure: Digitally Adjustable
- Carriage Height: Precise Carriage Height Adjustment
- Media Feeding: Advanced Six Gear Feeding System
- Roll Take-Up System: Easy Media Roll Take-Up System
Available Configurations & Pricing
| Model | Print Heads | Resolution | Price |
|---|---|---|---|
| CK8 - 512/42PL | 4 Konica Heads | 1440 DPI | ₹6,50,000 |
| CK8 - 512i/30PL | 8 Konica Heads | 1440 DPI | ₹8,50,000 |
Availability
The CK8 series is available in 4 Head (512/42PL) or 8 Head (512i/30PL) configurations. Additional premium features like aluminium beam and motor fixtures are available in the 512i/30PL model.
