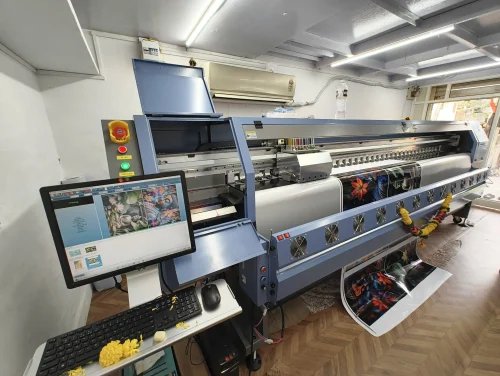

Konica 512i/30PL Flex Printing Machine
The Konica 512i/30PL Flex Printing Machine is a high-speed, industrial-grade printer designed for large-format solvent printing. With Japanese precision components and ultra-fast print speeds up to 1200 sq.ft/hr, this machine ensures superior performance for banners, vinyl, and flex prints.
Technical Specifications
- Beam Material: Aluminium
- Max Printing Size: 10.5 ft (3.2 m)
- Rod Thickness: 20 mm
- Country of Origin: Made in India
- Resolution: 720 dpi
- Max Print Speed: 1200 sq.ft/hr (2 Pass Mode)
- Model: 512i
- Brand: Konica
- Print Heads: Konica Minolta Japan 512i / 30 PL (4 Heads)
- Motor: Japanese Panasonic 400W Servo Motor
- Bearings: Japanese NSK Bearings
- Linear System: Japanese THK Linear with 2 Bearing Blocks
- Main Belt: 25mm Megadyne Italy Belt
- Pressure System: Negative Pressure System with Auto Pressure
- Media Sensor: Korean Autonics Sensor
- Control System: BYHX-A-Type KM1024i-8H
- RIP Software: UltraPrint RIP, PhotoRIP 4.4
- Heating System: Intelligent Infra-Red Heating
- Media Heating: 3-Way Digital Control
- Vacuum Pressure: Digitally Adjustable
- Carriage Height: Precise Carriage Height Adjustment
- Media Feeding: Advanced Six Gear System
- Media Handling: Separate Roll Take-Up System
Supported Media & Features
The Konica 512i/30PL supports various media types including:
- PVC Banner
- Flex
- Vinyl
- Mesh Banner
- One-Way Vision
- Backlit Media
Equipped with auto take-up & feeding, vacuum bed, white skipping, and auto tiling, it is ideal for high-volume production.
Available Configurations & Pricing
| Model | Print Heads | Speed | Price |
|---|---|---|---|
| Konica 512i/30PL | 4 Heads | 1200 sq.ft/hr | ₹10,00,000 |
